    327W

    327W
    Contact Hager for Price

    Specifications

    Box Quantity
    5
    Case Quantity
    20
    Certifications

    Meets ANSI A156.16 for L11290

    Engaged Projection
    3-1/2" (89 mm)
    Fasteners
    • Three #14 x 1-1/2" FPHWS
    • Three 1/4-20 x 3/4" FPHMS
    • Four 12-24 x 1" TPHMS
    • Four #12 x 1" TPHWS
    • Three 1/4-20 lead anchors
    Finishes

    US4, US10B, US26D

    Holder Projection
    1-15/16" (49 mm)
    Material

    Cast Brass

    Notes
    • Strike is adjustable 45° left or right
    • For use with wood or metal doors and drywall or concrete walls
    • Holder has a vertical adjustment once mounted on the door
    • For doors up to 500 lbs.
    • Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)
    Product Description

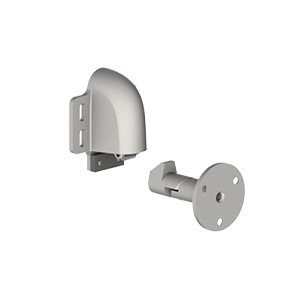

    Automatic Wall Stop & Holder

    Strike Projection
    3-1/16" (78 mm)

    Instructions

      Name Download File type
    		Installation Instructions 327W Auto Wall Stop and Holder ta04078-installation.pdf 57 KB
