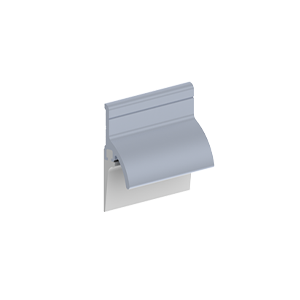

    770S

    770S
    Smoke Tested: True
    UL C/US Listed: True
    Contact Hager for Price

    Specifications

    Fasteners

    #6 x 5/8" Pan head sheet metal screws furnished

    Finishes

    MIL, DBA, BLA

    Fire Rating
    UL Listed
    Height
    7/8" (22 mm)
    Insert Codes
    B, V
    Inserts
    Nylon Brush, Vinyl
    Notes
    • Mil finish weatherstripping is supplied with zinc plated screws
    • Color anodized weatherstripping is supplied with screws plated to match
    • Stainless steel weatherstripping is supplied with stainless steel screws
    Product Description

    Door Bottom - Sweep w/ Rain Drip

    Warranty

    Five-Year Warranty

    Width
    19/32" (15 mm)

    Instructions

      Name Download File type
    		Screw-on Weatherstripping Installation Instructions - I-TW00268-Rev03.pdf 198 KB
    		.pdf

    CAD Files

      Name Download File type
    		770S CAD - PDF 770S_CAD.PDF 77 KB
    		.pdf
    		770S CAD - DWG 770S_CAD.DWG 310 KB
    		dwg
    		770S CAD - DXF 770S_CAD.DXF 684 KB
    		dxf
