742S

Contact Hager for Price

Fasteners

#6 x 5/8" Pan head sheet metal screws furnished with mortise types

Finishes

MIL

Fire Rating

UL Listed

Inserts

Vinyl

Length

24" to 60"

Notes

The 742S is designed to be completely concealed in the bottom channel of hollow metal doors
Furnished exact length as stated.
36"-48" can be trimmed up to 3"
Do not trim device wth length of 24"
All other sizes can be trimmed up to 1"

Product Description

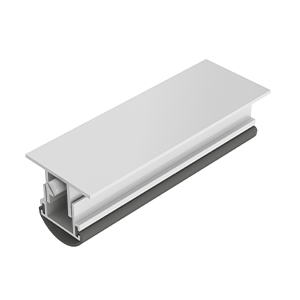

Automatic Door Bottom Hollow Metal Door Application

Size

Width: 1-3/8" (34.93 mm) Height: 3/4" (19.1 mm)

Warranty

Five-Year Warranty

	Name	Download	File type
	I-TW00293-Rev08 - Auto Door Bottoms.pdf	288 KB	.pdf

	Name	Download	File type
	Hager EPD - Auto Door Bottoms Weatherstripping 102.1	875 KB	.pdf
