(800) 255-3590
    1. Products Portal
    2. Thresholds and Weatherstripping
    3. ADA Ramp Thresholds

    442S - 6in. WIDE

    442S
    ADA Compliant: True
    BHMA Certified: True
    UL C/US Listed: True
    UL Certified EPD: True
    Contact Hager for Price

    Specifications

    Certifications

    BHMA Certified Handicap Accessibility

    Finishes

    MIL, DBA, BLA

    Fire Rating
    UL Listed
    Height
    1/2" (12.7 mm)
    How To Order

    To create a ramp that is a combination of the 442S and 443S, order 444S.

    Material

    Aluminum

    Notes
    • MIL finish thresholds are supplied with zinc plated screws
    • Color anodized thresholds are supplied with screws plated to match
    Options

    Available with Sure-Step non-slip abrasive coating

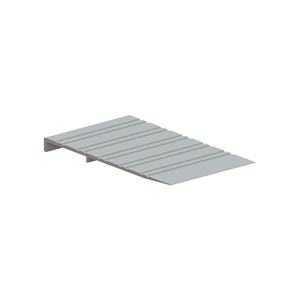

    Product Description

    Threshold Barrier Free Ramp 1/2" Rise 6" x 1/2"

    Special Features

    Ramp threshold that provides a 1:12 slope to meet the requirements of the Americans With Disabilities Act

    Specifications

    per linear foot

    Warranty

    Five-Year Warranty

    Width
    6" (152.4 mm)

    Instructions

      Name Download File type
    		Threshold Installation Instructions 6699-0011-Rev05.pdf 80 KB
    		.pdf

    Related Files

      Name Download File type
    		Hager EPD - Thresholds 102.1 563 KB
    		.pdf

    CAD Files

      Name Download File type
    		442S CAD - PDF 442s_pdf.pdf 67 KB
    		.pdf
    		442S CAD - DXF 442s_dxf.dxf 670 KB
    		dxf
    		442S CAD - DWG 442s_dwg.dwg 307 KB
    		dwg
