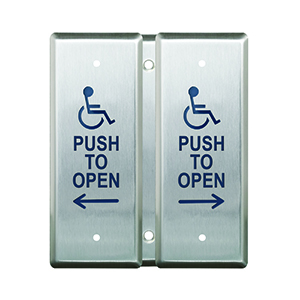

Wired/Wireless Vestibule Actuator
8228-05H
Contact Hager for Price
Specifications
- Accessories
-
Wireless Transmitter - 82TX - up to 500' range in open area
PN 100205151Wireless Receiver - 82RX - receives up commands from up to 40 82TX transmitters
PN 100205152 - Applications
-
- Interior and exterior
- For use with ADA Low Energy Power Operators
- Ideal installations include medical facilities, assisted living facilities, offices, clean rooms, schools, and buildings with public access
- Features
-
- Stainless steel faceplate provides durability while also reducing visible deterioration caused by abrasive cleaning agents
- Wired with optional wireless functionality
- Embossed graphics for durability
- Beveled edges
- How To Order
-
8228-05H/00
PN 100205100 - Material
- 18-gauge stainless steel
- Mounting Style
-
Surface, Vestibule - 8225-05P/SH | #100205144 | 8225-05P/SH VSTBL PLSTC SHLW BLK
Double Gang Electrical Box - compatible - Operating Temperature
- -4°F to 122°F (-20°C to 50°C)
- Size
-
- Height: 4-1/2" (114mm)
- Width: 4-1/2" (114mm)
- Depth: 1-3/16" (30mm)
- Switch Operation
-
Switch Type: Momentary
DPDT Switch: Not Available - Voltage
- 12/24 V AC/DC
- Warranty
- 1 Year
