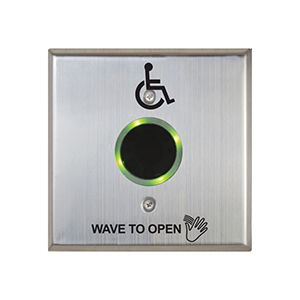

    Touchless Interior 4.5" Square Actuator

    8229-02H
    ADA Compliant: True
    Contact Hager for Price

    Specifications

    Applications
    • Interior only
    • For use with ADA Low Energy Power Operators
    • Ideal installations include medical facilities, assisted living facilities, offices, clean rooms, schools, and buildings with public access
    Features
    • Capacitive technology does not react to false inputs such as sunlight and reflections
    • Stainless steel faceplate provides durability while also reducing visible deterioration caused by abrasive cleaning agents
    • Touchless activation switches promote a reduction in the spread of germs
    • Embossed graphics for durability
    • Beveled edges
    Material
    18-gauge stainless steel
    Mounting Style
    Surface (black) - 8225-02P | #100205148 | 8225-02P 4.5" SQR PLSTC BLK
    Operating Temperature
    -4°F to 122°F (-20°C to 50°C)
    Size
    • Height 4-1/2" (114mm)
    • Width: 4-1/2" (114mm)
    • Depth: 1-1/4" (32mm)
    Switch Operation
    Switch Type: Momentary
    DPDT Switch: Optional
    Voltage
    12/24 V AC/DC
    Warranty
    1 Year

    Instructions

      Name Download File type
    		I-EA00318 [8229-XXH] [8229-XXH TOUCHLESS ACTIVATION HARDWIRED] [1].pdf 389 KB
    		.pdf
    		I-EA00349 [8200 Series] [8200 SwitchEnclosure Compatibility Chart] [-].pdf 3945 KB
    		.pdf
    		T-EA00351 [8228 and 8229] [Push and Touchless Activation ADA Switch Logo and Text] [-].pdf 122 KB
    		.pdf
