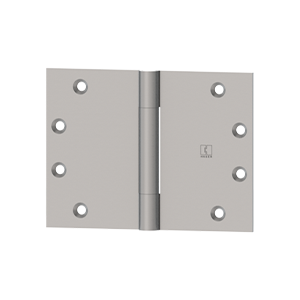

WTAB750

Contact Hager for Price

Applications: For use on heavy weight doors or doors requiring high frequency service.
Box Quantity: 3
Case Quantity: 24
Electric Modifications: EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Finishes: LS, USP, US3, US10, US10A, US10B, US26, US26D
Gauge: See Sizing Chart Options
Height: See Sizing Chart Options
How To Order: To order please click here to be redirected to the AB750 product. Choose the Wide Throw option in the drop down menu.
Knuckles: 3
Material: Steel
Notes: Non-rising removable pin with flush pin and plug.
Product Description: Wide Throw, Full Mortise, Heavy Weight, Concealed Anti-Friction Bearing
Width: See Sizing Chart Options

Name	Download	File type
Full Mortise Template - T311.pdf	416 KB	.pdf
Full Mortise Template - T317.pdf	105 KB	.pdf
Full Mortise Rounded Corners Template - T311RC.pdf	67 KB	.pdf
Full Mortise Template - T315M.pdf	365 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316-Rev02.pdf	67 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316M-Rev02.pdf	74 KB	.pdf
Full Mortise Template - T315.pdf	363 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312M-Rev02.pdf	73 KB	.pdf
Full Mortise Template - T311M.pdf	367 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312-Rev02.pdf	68 KB	.pdf

	Name	Download	File type
	Size Options Commercial Hinge_FullMortise_SizeOptions 12.pdf	138 KB	.pdf
